Latent Depth-Routing Spectroscopy in Standard Transformers

Oracle evidence for input-dependent effective depth mixtures in frozen Gemma-2-2b

Abstract

Standard transformers process inputs through a fixed sequence of layers, but the degree to which different layers contribute to each prediction varies with the input. We introduce oracle-alpha, an optimization-based method that recovers input-dependent effective depth mixtures from the frozen residual stream of google/gemma-2-2b without modifying model weights.

On a stratified confirm surface of 1024 prompts spanning four task strata, oracle routing improves next-token loss over uniform weighting by +1.6299 nats (95% CI [1.5865, 1.6758]; 1024/1024 prompts positive), and held-out predicted routing generalizes positively (+0.8292 nats; 958/1024 positive; $R^2 = 0.2392$). Softmax-constrained competitive routing outperforms matched unconstrained gating by +0.4888 nats (128/128 prompt-level wins), achieving this advantage with fewer effective sources (34.07 vs 45.59). Routing structure is non-random and task-conditioned, with strongest support in factual recall (silhouette 0.4709).

Extension lanes are bounded: tool-breakage evidence is positive against fixed-alpha controls (+1.0898) but mixed under dynamic donor counterfactuals, safety mediator activity remains refusal-collapsed, and the OIH external anchor is positive but calibration-sensitive (+0.0478 dynamic minus calibrated static). We frame these results as frozen-model effective depth-mixture analysis, not trained-router equivalence.

Methodology note: All results are from frozen google/gemma-2-2b (2B parameters). Oracle-alpha is post-hoc optimization on cached representations. Routing weights establish association, not causal mechanism. Extension lanes (tool-breakage, safety, OIH) use small sample sizes (N = 12 to 50). Non-causal framing throughout.

Why this matters

Transformer language models process every input through the same fixed stack of layers. But not all layers contribute equally to every prediction. If this contribution pattern varies with the input, standard transformers contain a latent depth-routing signal that no one has systematically characterized.

Understanding this signal matters for three audiences: researchers designing adaptive-depth architectures (such as Attention Residuals or Mixture-of-Depths) need to know what routing structure already exists in standard models; interpretability researchers need tools to characterize how models allocate computation across depth; and practitioners considering layer pruning need to understand that depth value is input-dependent, not fixed.

At a glance

Oracle improvement

+1.63 nats

Over uniform weighting, 1024/1024 prompts positive

Predicted positive

958/1024

Held-out ridge predictor, $R^2 = 0.24$

Effective sources

34.07

Softmax regime (vs 45.59 unconstrained)

Factual silhouette

0.4709

Raw-source clustering, 32/32 resamples > random

What we did

We optimized per-sequence softmax-constrained routing weights (oracle-alpha) over the 53 frozen residual sources of google/gemma-2-2b on a stratified prompt surface of 1024 prompts across four task strata (factual recall, reasoning/math, code/procedural, general text). We compared routing regimes (softmax, unconstrained, top-k), analyzed task-conditioned routing structure, and evaluated three extension lanes (tool-breakage, safety alignment, external anchor).

What we found

Strong, universal oracle routing signal

Oracle routing improves over uniform on every tested prompt (1024/1024). The improvement generalizes to held-out prediction: a ridge predictor trained on 256 pilot prompts achieves +0.8292 nats improvement on 958/1024 confirm prompts. This indicates the signal reflects recoverable structure, not just in-sample fitting.

Competition via softmax constraint is empirically beneficial

Softmax-constrained routing outperforms unconstrained gating by +0.4888 nats on every prompt (128/128 wins) and all top-k variants. It achieves this with fewer effective sources (34.07 vs 45.59), consistent with the simplex constraint forcing sources to compete for weight and concentrating allocation on informative layers.

Factual recall shows the most structured routing

Factual recall achieves silhouette 0.4709 for raw-source clustering (vs 0.14 random), with 99.6% family purity across 12 clusters. Route modes differentiate by both semantic content and prompt presentation format. Reasoning/math shows secondary positive structure (silhouette 0.25); code and general text do not exceed random controls.

What this does NOT show

• No claim that frozen-model oracle-alpha recovers or equals trained Attention Residuals routing. Oracle-alpha is effective depth-mixture analysis on fixed representations, not trained-router equivalence.
• No claim that tool-breakage broadly supports matched dynamic routing superiority. The pooled dynamic donor controls are mixed.
• No claim that safety mediator partitioning extends beyond refusal identification. The active partition is refusal-only.
• No causal mechanism claim. Oracle-alpha establishes association, not causation.
• No router-distillation readiness claim. The best $R^2$ (0.41) remains below the preregistered 0.5 gate.
• No strong Figure 8 trained-routing alignment claim. The local proxy campaign shows inverted entropy ordering.
• No generalization beyond google/gemma-2-2b. Single model, single architecture.

How to use this

• Adaptive-depth researchers: The oracle ceiling (+1.63 nats) and competition mechanism (softmax > unconstrained) provide empirical targets and design guidance for learned routing systems.
• Interpretability researchers: The stratum-conditioned routing structure, especially in factual recall, offers a new lens for studying how models allocate computation by task type.
• Practitioners: The catastrophic failure of static pruning on the OIH surface (-3.59 nats, 0/50 positive) motivates input-dependent routing over fixed layer dropping.

Methods overview

Model: google/gemma-2-2b (2B parameters, 26 transformer layers, 53 residual sources). Frozen; no weight modification. 53 sources = 1 embedding output + 26 attention outputs + 26 MLP outputs.

Prompt surface: registry_v5, 256 pilot / 1024 confirm prompts across four task strata (factual recall, reasoning/math, code/procedural, general text). All method choices locked on pilot before confirm evaluation.

Oracle-alpha optimization: For each sequence, optimize $\mathbf{z} \in \mathbb{R}^{53}$ with $\boldsymbol{\alpha} = \mathrm{softmax}(\mathbf{z})$, minimizing cross-entropy of the routed output against original next-token predictions. Adam optimizer, 20 steps, lr=0.1, seed=11.

Regime comparison: Softmax-constrained (probability simplex), unconstrained ($\sigma(z_i)$ per source), and top-k ($k \in \{2, 4, 8, 13, 26\}$ with straight-through gradient estimator). Matched initialization ($\mathbf{z} = \mathbf{0}$).

Null baselines: Uniform ($\alpha_i = 1/53$), random Dirichlet, magnitude proportional, last layer only.

Extension lanes: Tool-breakage (tuned-lens KL divergence under routing), safety alignment (refusal/harmfulness direction localization on gemma-2-2b-it), OIH external anchor (MIB-compatible MCQA surface).

Results

Oracle signal and generalization (C1)

On the confirm tranche (N=1024), oracle-alpha routing improves mean next-token loss over uniform weighting by +1.6299 nats (95% bootstrap CI [1.5865, 1.6758]). All 1024 prompts show positive improvement.

Baseline	Mean loss (nats)	Oracle advantage
Uniform	4.7341	+1.6299
Random Dirichlet	9.4581	+6.3539
Magnitude proportional	6.9846	+3.8804
Last layer only	20.9150	+17.8108
Oracle	3.1042	---

Held-out predicted routing yields +0.8292 nats over uniform (958/1024 positive; $R^2 = 0.2392$; mean JS divergence to oracle = 0.0985).

Regime comparison (C3)

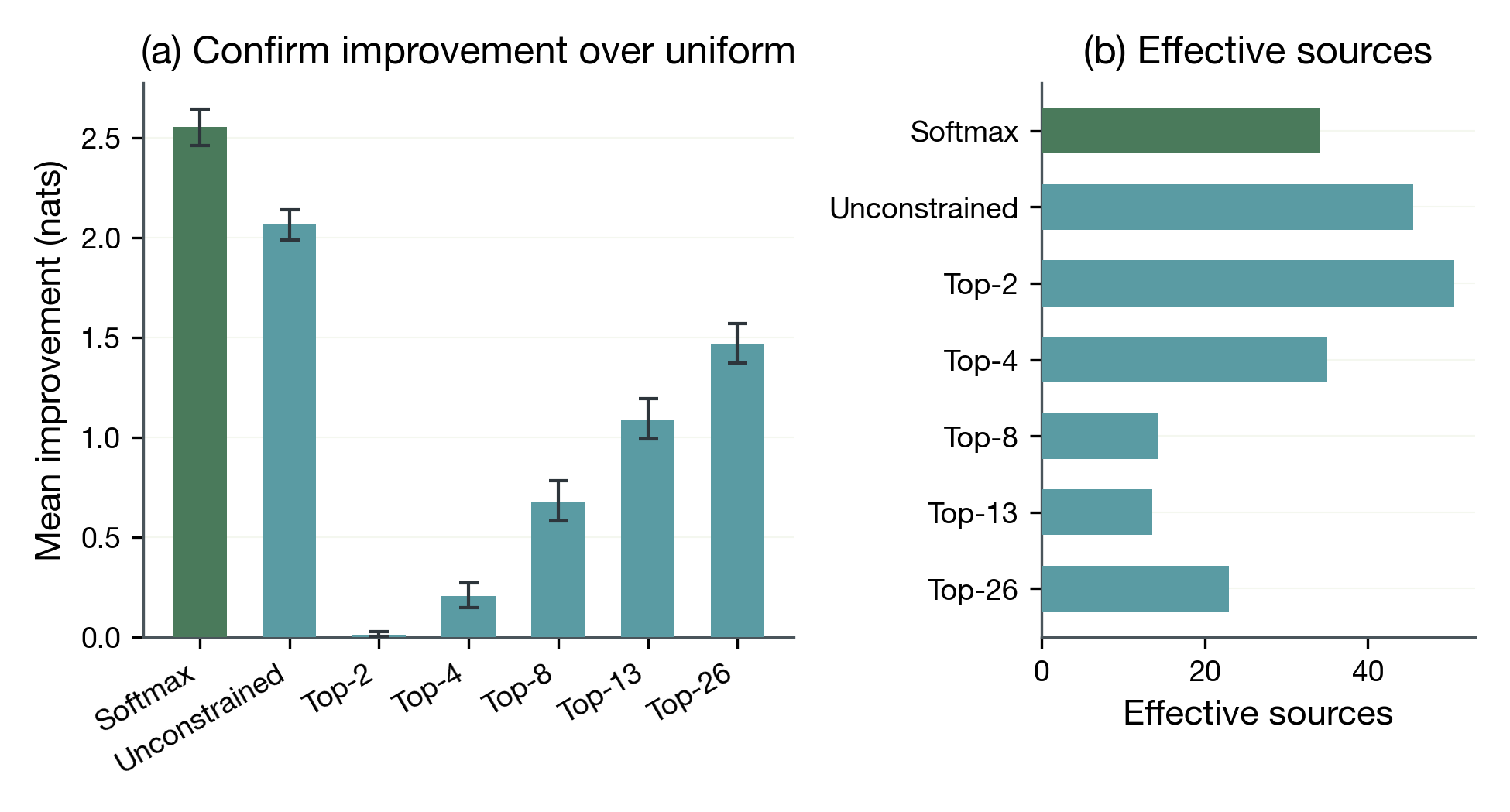

Figure 1. Softmax-constrained routing achieves the highest mean improvement (+2.55 nats) with fewer effective sources (34.1) than unconstrained gating (45.6). All pairwise comparisons show 128/128 prompt-level wins for softmax. If implementing depth routing, the softmax simplex constraint is empirically preferred; the competition mechanism concentrates weight on informative sources.

Softmax outperforms unconstrained gating by +0.4888 nats on every prompt (128/128 wins). The effective-source analysis reveals the mechanism: softmax uses 34.07 effective sources vs 45.59 for unconstrained. The simplex constraint forces sources to compete for weight, producing more selective and more useful routing. Effective sources = $2^{H(\alpha)}$ where $H$ is Shannon entropy. Higher values indicate more uniform weight distribution.

Routing structure and task conditioning (C2)

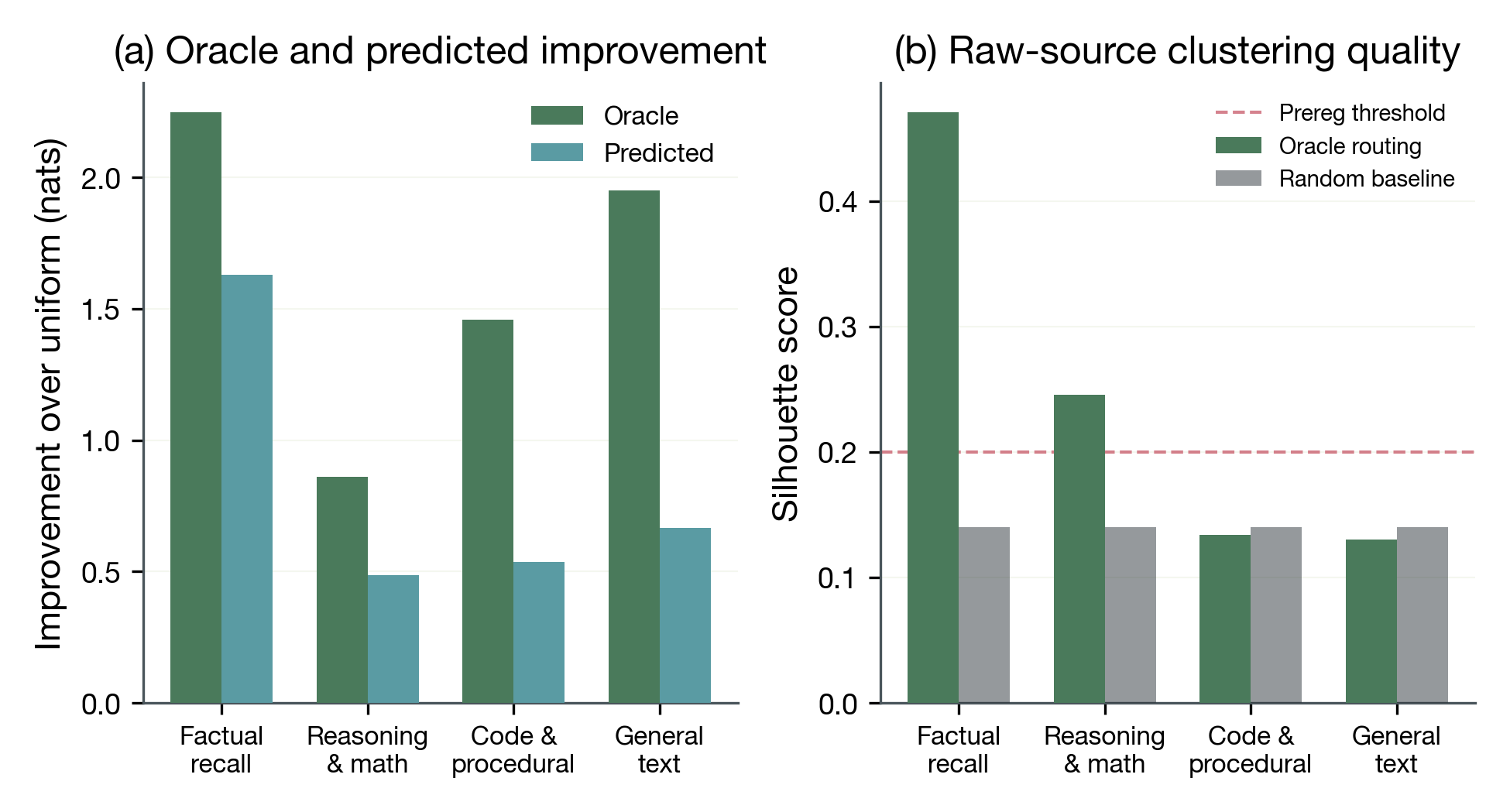

Figure 2. (a) Oracle improvement by stratum with predicted improvement overlay. (b) Silhouette scores for raw-source clustering. Factual recall shows the largest oracle improvement (+2.25 nats) and strongest clustering (silhouette 0.47). Factual recall is the most amenable stratum for depth-routing analysis; code and general text lack raw-source structure.

Factual recall achieves silhouette 0.4709 (vs 0.1401 random; 32/32 resamples oracle > random). Reasoning/math achieves 0.2456 (32/32 resamples). Code/procedural and general text do not exceed random controls.

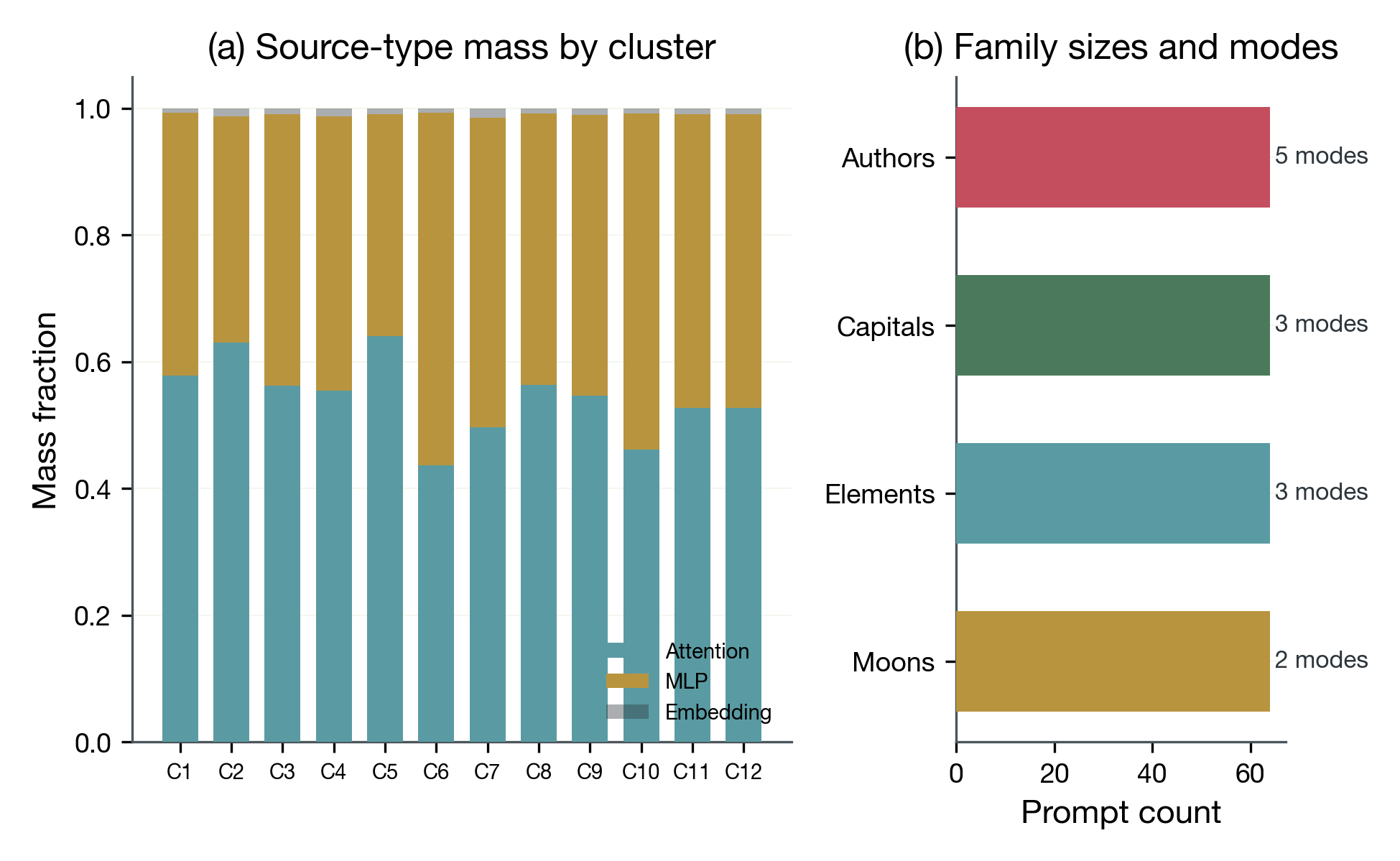

Figure 3. (a) Source-type mass by cluster. (b) Family sizes and mode counts. Within factual recall, k=12 clustering achieves 99.6% family purity (255/256). Route modes differentiate by both semantic family and prompt presentation format. Factual queries route through measurably different depth mixtures by domain and prompt frame, suggesting routing captures processing strategy.

Within factual recall (N=256), k=12 clustering produces near-perfect family purity: 255/256 prompts cluster with their semantic family. Route modes differentiate by prompt presentation format, not just factual content. Map-style capital queries route differently from quiz-style capital queries, consistent with different processing strategies for the same factual domain.

Extension lanes (bounded evidence)

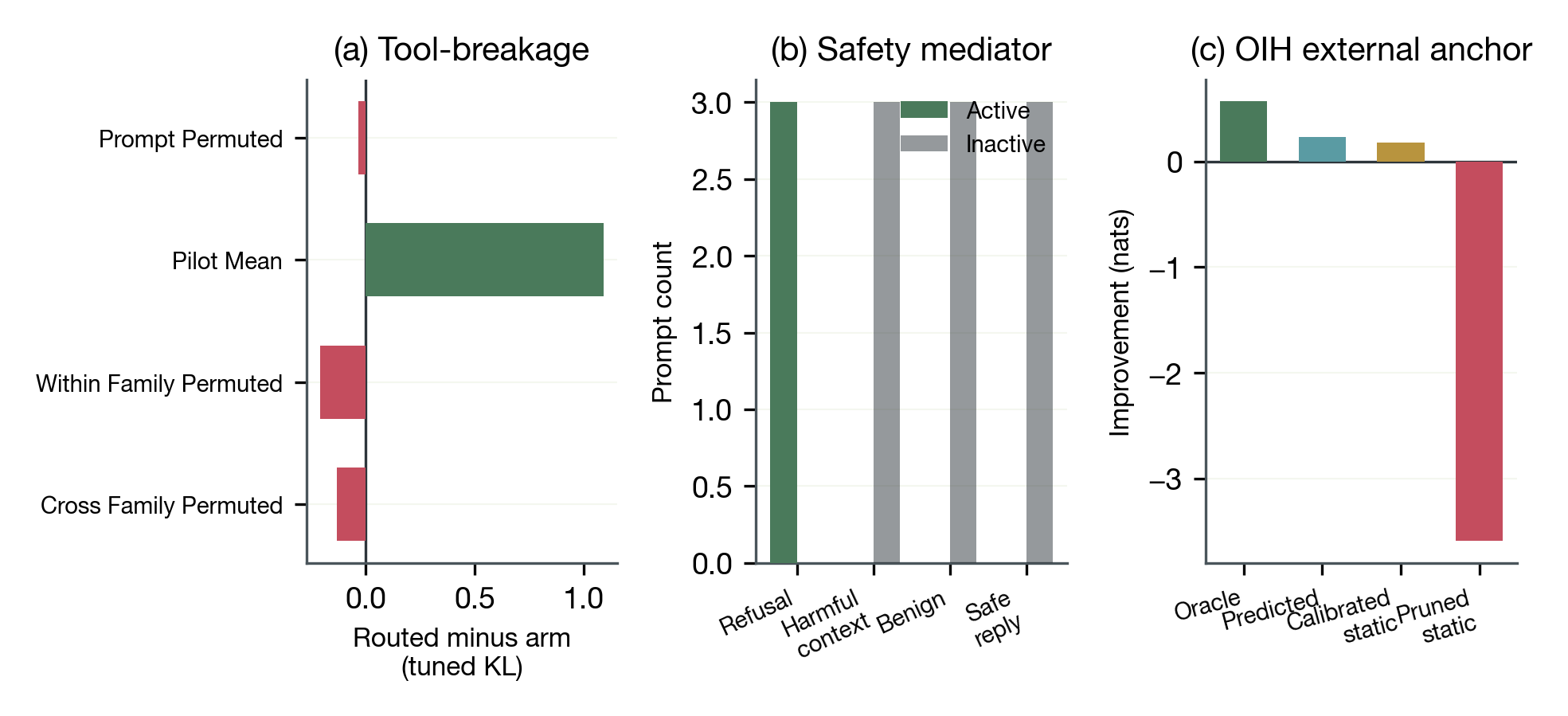

Figure 4. (a) Tool-breakage: oracle routing exceeds fixed-alpha by +1.09 but dynamic donor controls are mixed. (b) Safety mediator: 3 active prompts (all refusal) vs 9 inactive, showing refusal-collapse. (c) OIH: dynamic routing is positive but the calibrated-static margin is modest (+0.05 nats); pruned static catastrophically fails (-3.59 nats). Extension lanes provide bounded evidence with explicit caveats; none supports strong standalone claims.

Tool-breakage (C4, mixed)

Oracle routing increases tuned-lens KL divergence by +2.9065 over original (all 10 route modes positive), and exceeds fixed pilot-mean-alpha by +1.0898. However, dynamic donor controls (prompt-permuted, within-family, cross-family) are mixed or slightly negative on the pooled metric. The fixed-alpha advantage supports route-specificity, but the mixed dynamic controls limit claims about matched routing superiority. Dynamic donors use seeded-derangement pairing (seed 13) to remove prompt-order artifacts. The mixed result persists after this correction.

Safety alignment (C5, mixed)

Refusal direction localizes at layer 22 and harmfulness at layer 25 in gemma-2-2b-it, with near-orthogonal directions (cosine similarity = -0.0162). Behavioral validation is perfect (hit rate = 1.0, pass rate = 1.0). However, mediator-conditioned routing collapses to refusal-only: 3 active prompts are all refusal-labeled, with no role diversity expansion. We cannot claim routing differences distinguish harmful contexts from safe responses on the current surface.

OIH external anchor (C6, mixed)

On the external MCQA surface (N=50 confirm), predicted improvement over uniform is +0.2290 nats. The pruned-static baseline catastrophically fails (-3.5916 nats, 0/50 positive), motivating input-dependent routing. The calibrated static comparator (pilot-mean-alpha) achieves +0.1813, producing a dynamic-over-calibrated margin of +0.0478 nats. The margin is modest and calibration-sensitive: dynamic minus pruned-static = +3.82, but dynamic minus pilot-mean = +0.05, an 80x difference.

Decision relevance

What this shows

• Frozen standard transformers contain recoverable input-dependent depth-routing structure (+1.63 nats, universal across 1024 prompts).
• The softmax competition mechanism is empirically superior: it achieves better loss with fewer effective sources than unconstrained gating.
• Routing structure is richest in factual recall, with near-perfect family purity and prompt-frame conditioning within families.
• Static layer pruning is catastrophically bad on some surfaces; input-dependent routing is motivated.

What this does NOT show

• No trained-router equivalence. Oracle-alpha characterizes what routing structure exists in fixed representations; it does not predict what a co-adapted trained router would learn.
• No causal mechanism. The association between routing weights and loss improvement does not establish causation.
• No multi-model generalization. All results are from a single model (gemma-2-2b, 2B parameters).
• No extension-lane standalone claims. Tool-breakage, safety, and OIH each have explicit mixed/bounded caveats.

Limitations

1. Single model. All core results are from frozen google/gemma-2-2b (2B parameters). Generalization beyond this specific model is unknown.
2. Post-hoc analysis. Oracle-alpha operates on cached representations. Routing weights may reflect optimization artifacts of the 20-step Adam procedure rather than latent model structure. The held-out predictiveness check ($R^2 = 0.24$) partially addresses this but does not rule it out.
3. Predictiveness gap. The $R^2$ of 0.24 means the majority of variance in oracle routing is unexplained by the linear predictor.
4. Extension-lane sample sizes. Tool-breakage uses N=20 prompts with 10 route modes; safety uses 12 confirm prompts. Family-level decompositions use 6 to 8 prompts per family.
5. Top-k gradient estimator. The straight-through estimator may inflate the apparent inferiority of low-k regimes.
6. Mediator threshold sensitivity. The refusal-collapse result depends on a specific activation threshold (122.08); threshold sensitivity is not reported.
7. No causal validation. Oracle-alpha establishes association, not causal mechanism.
8. Prompt surface coverage. The registry_v5 surface covers four task strata but not all possible task types.
